Configure Payara Server in Eclipse IDE

📅 11 octubre 2020✍ Marco Toscano Freire

Hello friends, in this opportunity I will show how to install the Payara Tools in Eclipse to work with Payara Server Application. Before to begin is important say you, that  I am working with: Eclipse IDE 2019 and Payara 5.20. Once said it, let me begin.

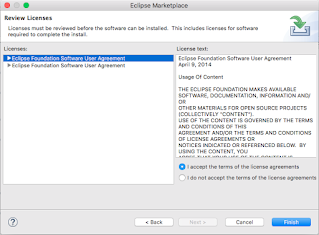

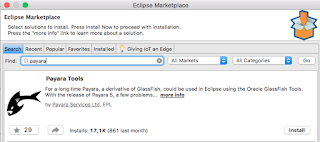

1.- First, we need to install the plugin Payara Tools from Eclipse Marketplace from  Help--> Eclipse Marketplace option. Click the Install button, accept the terms of the license agreements, and click the Finish button. Once installed, the eclipse needs to restart to apply the changes.

Configure Payara Server in Eclipse IDE

Configure Payara Server in Eclipse IDE

2.- Before to create a new Payara server instance, we need to create a Payara Runtime. To do this, we need to do the following:

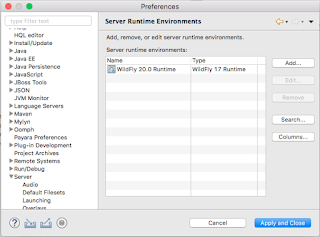

  • Select the Windows-->Preferences-->Runtime Environments option and click the Add button to configure the Payara Runtime

Configure Payara Server in Eclipse IDE

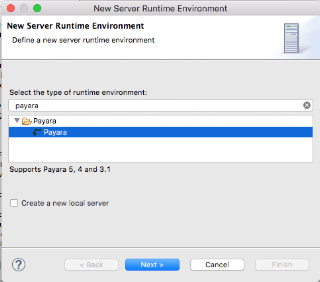

  • Select the Payara Runtime Environment and click the Next button.
Configure Payara Server in Eclipse IDE

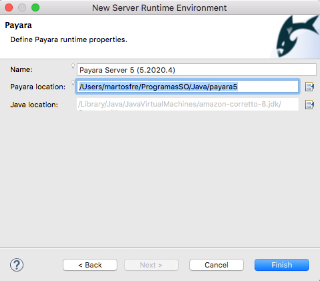

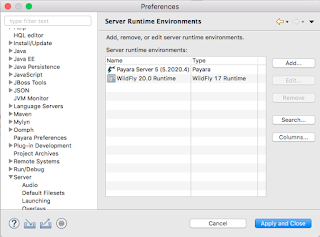

  • Configure the Payara and Java Location and click the Finish button.

Configure Payara Server in Eclipse IDE

Configure Payara Server in Eclipse IDE

3.- Finally, we need to create a Payara Server Instance. To do this, we need to do the following:

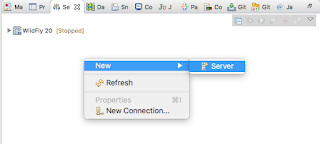

  • Select the Windows-->Show View --> Server option. Once opened the view, right-click on it and select New --> Server option.
Configure Payara Server in Eclipse IDE

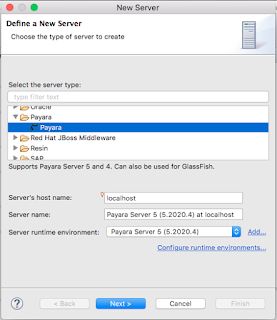

  • Select the Server type, in this case, we need to select Payara and click Next.
Configure Payara Server in Eclipse IDE

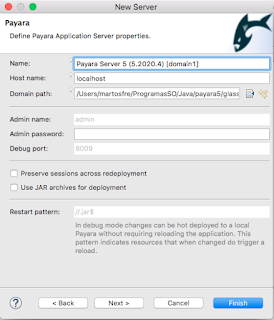

  • Configure the Payara Server properties, we use the default options, but you can configure the other domain, credentials, and other parameters according to your needs. Finally, click Finish and the Payara Server are ready to work with it.
Configure Payara Server in Eclipse IDE


I hope, that the post is useful for you. Don't forget to share, comment on it. Greetings and bless you.
